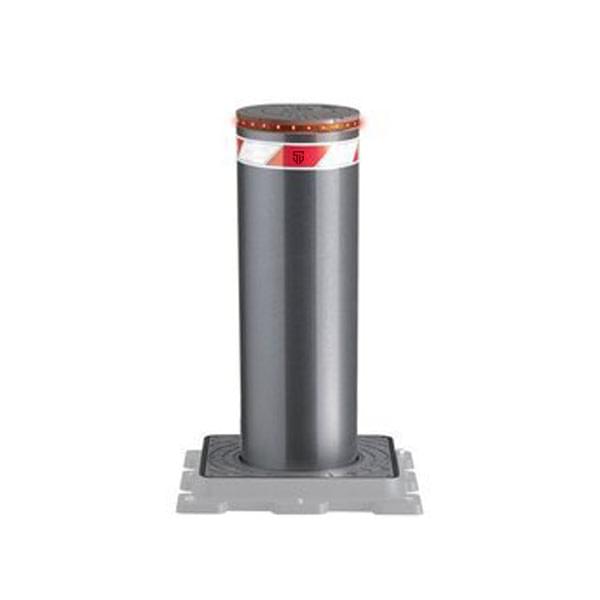

Speedgatz traffic Bollards has been a wonderful choice for the sensitive areas which requires high level of protection against any forceful intrusion along with regulating the authorized traffic movement of vehicles. The bollard is designed to block vehicle access into restricted area while operating in a safer, quieter and more reliable way. The drive unit of the bollard is an independent one enabling each bollard to operate individually as well as in sets. These bollards can stop a vehicle of approximate 6.8 tonnes running with a speed of 50 kms /hr which is a criteria for a bollard of K-4 (PAS-68)Standard. The bollard has red reflective strips for illumination and a buzzer for indicating rising & lowering movements. CRB-600/800 is available in fixed as well as Automation version.
- Government Institutions
- Financial Institutions
- Military Facilities
- Sports Complexes
- Police Headquarters
- Recreational Areas
- Research Centers
- Power Plants
- Embassies
- Hotels
- Airports
- Industrial Areas
| Model | CRB-600/800 |
| Drive Unit | Electro- Hydraulic |
| Cylinder Stroke | 600/800 mm |
| Cylinder Diameter | 275 mm |
| Rising time | 5-6 sec (Adjustable) |
| Lowering time | 2-3 sec (Adjustable) |
| Cylinder Material Finish | Powder Coated/AISI-316 |
| Thickness | 6 mm/8 mm |
| Maximum Pressure | 40-60 Bar |
| IP Rating | IP 67 |
| Power Supply | 230 Vac +6% – 10%; 50/60 Hz |
| MTBF | 5 Million Cycle |
| Duty Cycle | Intensive Use |
| Operating Temperature in Celsius & Humidity | -40 + 70 degree celsius, 95% non condensing |
| Emergency Lowering | Manual Key |
| Impact Resistance | 6800 kg at 50km/hr withstanding capacity |
| Compatibility | With all Kind of Access Control & Security Systems |
- Loop Detector
- Key-switch override
- Traffic Light
- Safe Beam Sensor
- Remote Control
