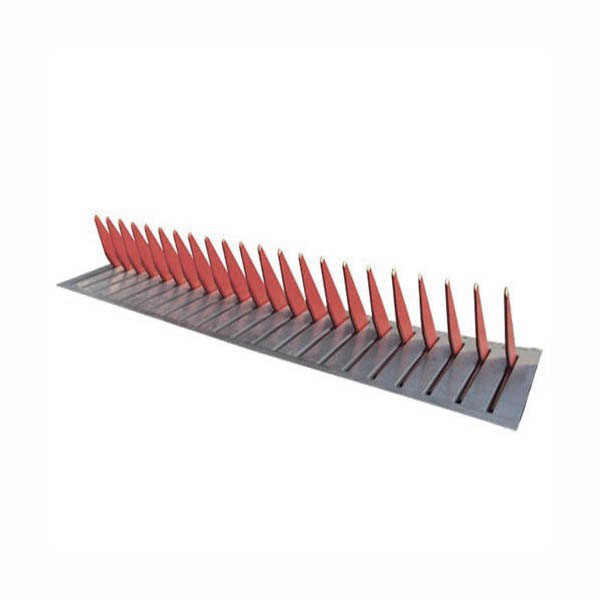

Axle Breaker


Speedgatz high security Axle breaker are manufactured from heavy duty blades. The functionality of the axle breaker is to damage the limits the intruding vehicle on the spot by destroying suspension, axle & wheels. It can be operated with the help of push button, wireless remote control or with an access control system. It can also get integrated with boom barrier so that with every operation when the barrier goes up the axle breaker goes down giving an authorized access to the vehicle.

Request Proposal Download Datasheet
Model HAB- 6000
Drive Unit Electro- Hydraulic
Blocking width 2000- 6000mm
Blade Height 450 mm (Customizable)
Blocking Angle 60 degree (Customizable)
Axle Load 50 tonnes
Opening/Closing time 3-4 sec (Adjustable)
Housing Material of construction Galvanized Mild steel
Distance Between Blades 150 mm (Customizable)
IP Rating IP 67
Power Supply 230 VAC ,50 Hz
MTBF 10 Million Cycle
Duty Cycle 100%
Operating Temperature & Humidity -40 + 70 degree Celsius , 95% non condensing
Emergency Lowering Manual Key/Hand Pump
Compatibility With all Kind of Access Control & Security Systems
